Tianjing Intelligent Equipment Co., Ltd. was formerly established in Shenzhen in 2015. In 2019, it established a production headquarters base in Xuzhou, Jiangsu, and in 24, it established Fujian Tianjing Equipment Company in Shuitou Town, Fujian.
The company mainly researches and produces environmentally friendly multi wire cutting machines, multi wire square cutting machines, single wire cutting machines and other diamond long crystal cutting equipment. The equipment is widely used in magnetic materials, special ceramics, semiconductor materials, sapphire, rare metals and alloys, graphite, silicon carbide and other hard and brittle materials.
Total patents350items
Investment Holdings and Enterprises2 companies
Authorized Invention and Utility Model Patents185 pieces
pplied for and under approval for invention and utility model patents165 pieces
We have a total of 350 patents and two investment holding companies. From 2019 to 2021, it was selected as one of the Top 100 Semiconductor Key Enterprises in Jiangsu Province. The Jiangsu Provincial Department of Science and Technology awarded it as one of the Top 100 Innovative Enterprises in Jiangsu Province, the Jiangsu Provincial Doctoral Double Creation Team, and the Xuzhou City Doctoral Double Creation Team, undertaking two national major sub projects.
We have 185 authorized invention and utility model patents, and have applied for 165 invention and utility model patents under approval.
TJ3320 wire saw
This model is a multi wire cutting machine designed by our company for natural stone cutting needs, mainly used for cutting natural stone waste materials. The equipment structure combines casting and frame, with high accuracy and strong stability.
This equipment has high cutting accuracy, small warpage,stable cutting quality, and a power outage continuous line protection device, resulting in low cutting costs..
APPEARANCE DESIGN
The appearance design adopts tough lines and geometric proportions to reflect the product characteristics of precision equipment.
| Project | Unit | Value |
|---|---|---|
| Maximum workpiece size | mm | 3300*2000*2300 |
| Roller wrap diameter (double cone) | mm | Φ240*2000 four-axis |
| Vertical lifting stroke of workbench | mm | 2500 |
| Wire running speed (double cone) | m/min | 1000(max) |
| Diamond wire diameter | mm | 0.45–0.55 |
| Supply wheel storage capacity | Km | 0-20(0.45-0.55 Diamond line) |
| Cutting thickness range | mm | 10–50 |
| Power supply | mm | Xiang SixianAC380V/50Hz |
| Project | Unit | Value |
|---|---|---|
| Maximum workpiece size | KW | ≤1700 |
| Roller wrap diameter (double cone) | KW | 29X4 units |
| Vertical lifting stroke of workbench | KW | 7.5X2 units |
| Wire running speed (double cone) | KW | 0.75X2 units |
| Diamond wire diameter | KW | 7.5X2 units |
| Supply wheel storage capacity | KW | 11X2 units |
| Cutting thickness range | mm | 5300*9280*6750 |
| Power supply | T | about 40 |
PRODUCT FEATURES
The main transmission components of the TJ3320 model are all imported to ensure the accuracy of the entire machine.
The overall noise of the equipment is low to avoid hearing damage to workers.
The discharge, collection, layout, spindle operation, cutting line tension, and worktable feed are all driven and controlled by servo motors.
Tianjing Shengong series uninterruptible power supply UPS.
The tension control of the supply and collection lines adopts a closed-loop feedback control method, ensuring the constant tension of the cutting line during the cutting process.
Simultaneously equipped with tension warning function, effectively avoiding wire breakage faults caused by abnormal tension fluctuations.
PRODUCT FEATURES

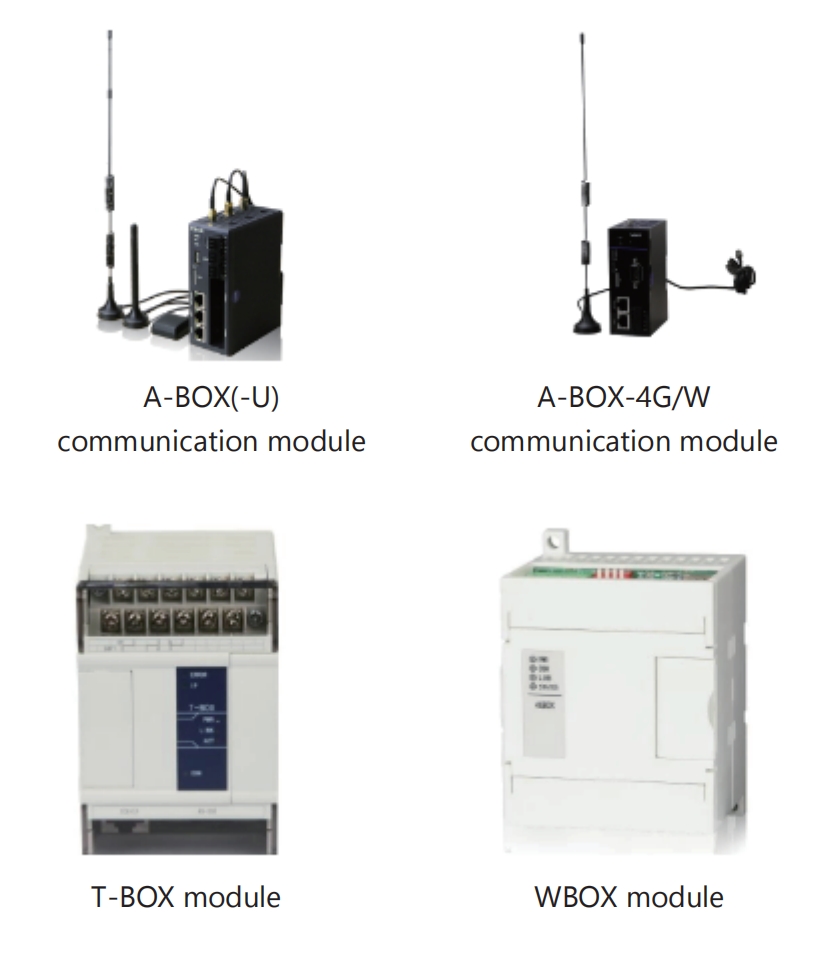

Tianjing’s entire series of intelligent devices are equipped with cloud systems, remote monitoring, and maintenance functions,providing customers with the fastest and safest after-sales service, making use easier!

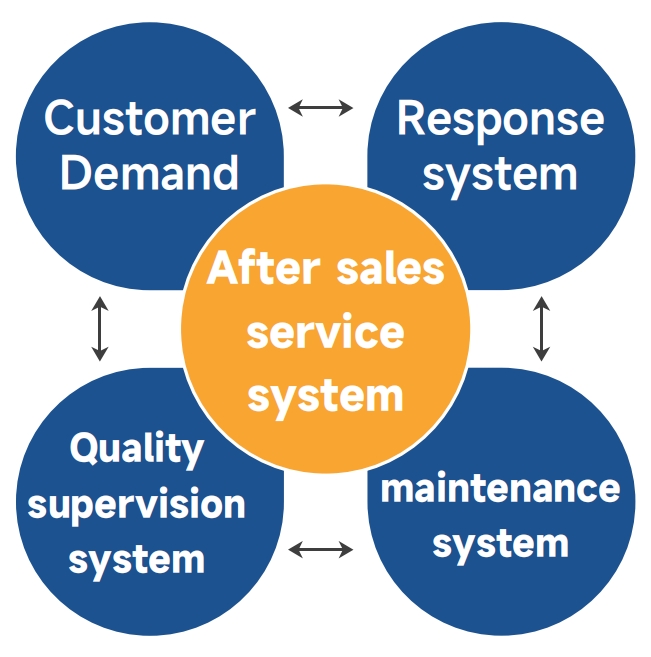

AFTER-SALE SERVICE
Tianjing’s entire series of intelligent devices are equipped with cloud systems, remote monitoring, and maintenance functions, providing customers with the fastest and safest after-sales service, making use easier!
Customer requirements:
Any service requests within the scope of the project, including inquiries, problem declarations, complaints, and suggestions.
Quality supervision and intelligence system:
To ensure the quality of services, relevant service level agreements are formulated, and internal quality supervision is conducted to evaluate whether the provision of services is normal through satisfaction surveys and other methods.
Response system:
Accept customer needs as soon as possible, solve problems as quickly as possible, activate emergency plans in case of emergencies, and ensure that customer systems return to normal as soon as possible.
Maintenance system:
Proactively serve customer systems, identify and resolve system vulnerabilities, optimize system performance, and propose reasonable improvement and upgrade suggestions.
